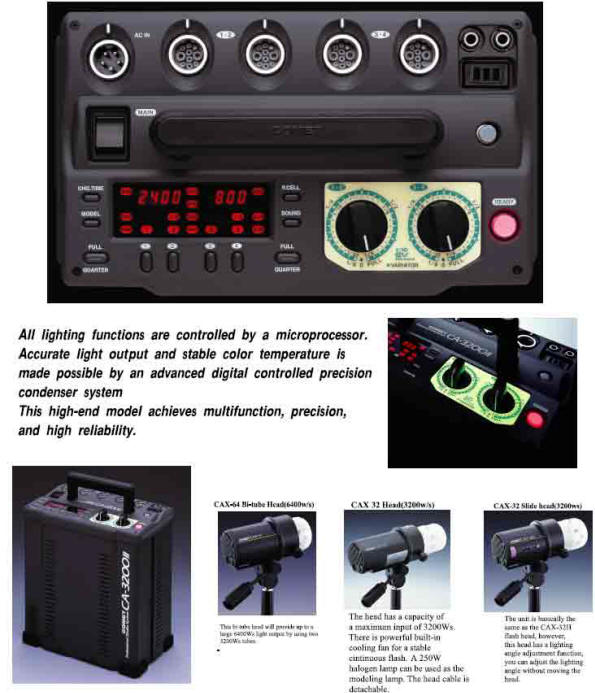

CA–3200
II
Specification |
|
Product name |
CA-3200 II Power pack |
Type |
CA-3200 II |
Input voltage (V) |
AC120V 60Hz |
Fuse rating (A) |
Strobe
20A / Strobe
?
20A / Modeling 10A |
Recycle time (Sec.) |
Quick: 3.8 Slow:10 |
Max. output (Ws) |
2300 |
Power Control Method |
1 circuit / 2 circuits Capacitor
Controlled System |
Head sockets |
4 sockets |
Output distribution (Ws) |
3200 / 2400:800 (Head connection
automatic detect) |
Output select (Ws) |
FULL or QUARTER selectable 3200fg800
/ 2400:800fg600:200 |
Variator range (Ws) |
Full range: Full~1/8(3EV) 1/10 step Quarter
range: 1/4~1/32(3EV) 1/10 step |
Output display |
Digital display (2 sets) |
Modeling lamps |
250W x 4 |
Modeling lamp mode |
Tracking / Full 100% / OFF |
Independent head switch |
Flash ON/OFF, Modeling lamp ON/OFF |
Sync connector |
CR type x2, CX type (3PBF) x1 |
Photocell |
Built-in with ON/OFF switch |
Sound mode |
Charging / Charge completion / OFF |
Flash fail warning |
Corresponding indicator blinks and sounds
continuously.
If the flash unit was fired before being
fully recharged, the warning will be issued. |
Over heat warning |
“HEAT” blinks and sounds continuously |
Fuse blown warning |
Corresponding indicator blinks |
Cooling fan |
Built-in |
Dimensions (inch)/(mm) |
12.3(inch)/313(mm)(w) x 12.7(inch)/322(mm)
(h) x 7.2 (inch)/183(mm)(d) Handle is excluted |
Weight (lb)/(kg) |
28.2(lb)/12.7(kg) |
